Excavation and Retaining Structures
Stable Excavation & Retaining in Sydney
Excavation and retaining structures are critical for managing slope stability, enabling vertical construction, and maximising land use in Sydney’s urban and suburban landscapes. The city’s diverse geology—from Hawkesbury Sandstone to expansive clays—demands tailored designs to prevent collapses, soil movement, or damage to adjacent properties.
Key Considerations
Thorough site assessment is essential for safe and efficient construction. Soil and rock classification guides excavation methods, while retaining wall design ensures stability under varying loads.
-
Soil and Rock Characterisation
Classifying materials using AS 1726 (Geotechnical Site Investigations) to determine excavation methods (mechanical vs. blasting) and shoring requirements.
-
Retaining Wall Design
Selecting structures (gravity walls, cantilevered, or anchored systems) based on soil pressure, groundwater, and surcharge loads per AS 4678 (Earth Retaining Structures).
-
Urban Constraints
Managing vibrations, access limitations, and proximity to heritage buildings in dense areas like the Sydney CBD.
Methodologies
-
Rock Excavation
- Controlled blasting or hydraulic splitters for sandstone and shale.
- Scaling and rock bolting to stabilise faces in coastal cuttings.
-
Retaining Systems
Reinforced Soil Walls: Geogrid-reinforced fills for cost-effective slopes.

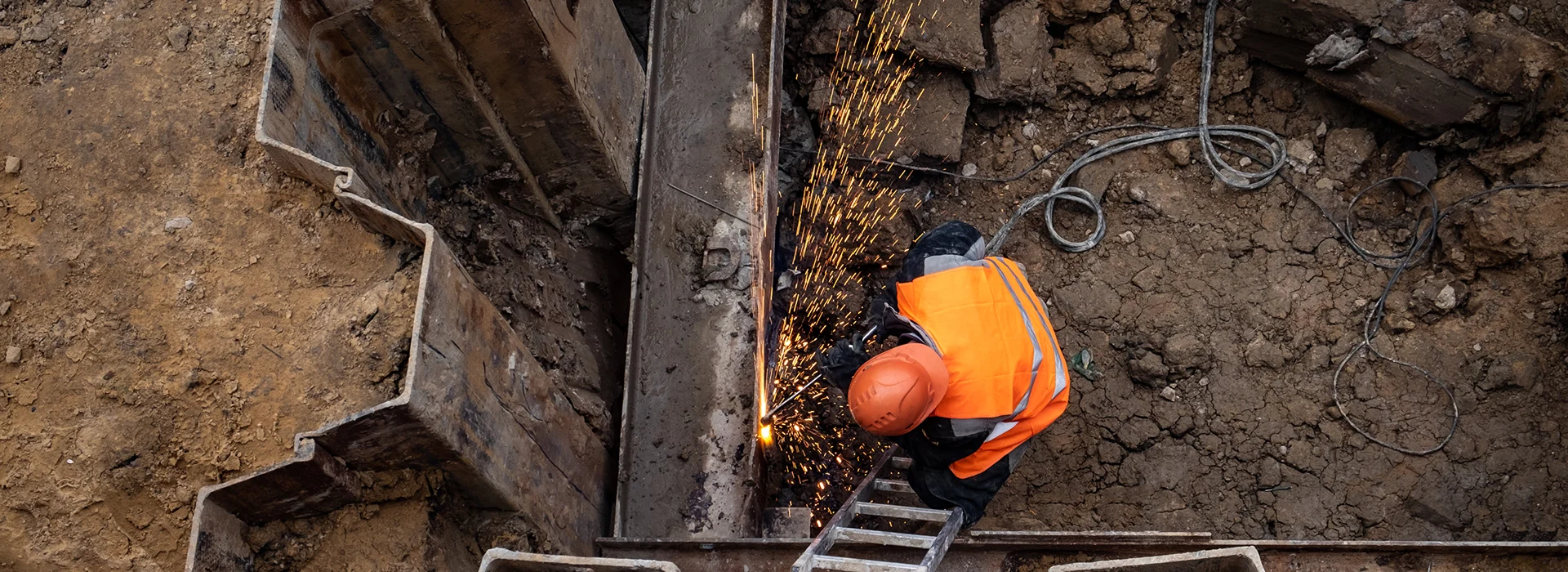

Sheet Piling: Vibratory-driven steel piles for tight urban sites with soft soils.
Shoring walls: Temporary support for deep basements in clay-rich areas.
Challenges in Sydney
Sydney’s diverse geology presents unique construction challenges. Reactive clay soils require advanced drainage solutions, while variable rock conditions demand precise excavation techniques.
-
Reactive Clay Soils
Swelling pressures in Western Sydney necessitate deeper footings and drainage behind walls.
-
Variable Rock Conditions
Weathered sandstone layers in coastal zones (e.g., Bondi) require careful benching to prevent rockfalls.
-
Groundwater Ingress
Hydrostatic pressure in waterlogged soils (e.g., alluvial plains) demands weep holes or drainage layers.
Compliance
Adhering to established guidelines ensures construction quality and safety
-
AS 3798 (Guidelines on Earthworks)
Specifies slope angles, compaction, and erosion control.
-
SafeWork NSW Regulations
Mandates engineered designs for excavations deeper than 1.5m.
Deliverables
Comprehensive documentation ensures compliance and quality assurance.
-
Engineered excavation and shoring plans.
-
Retaining wall design certifications for council approval.
